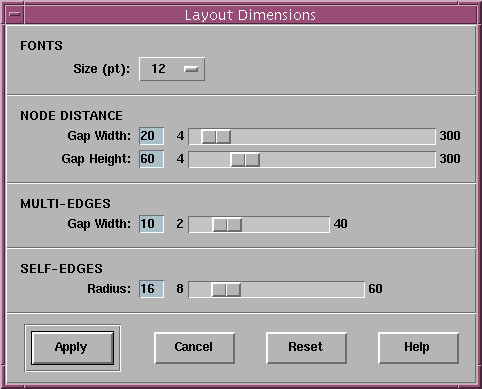

Layout Dimensions Dialog Window

This dialog window can be used for controlling the dimensions of a graph visualization. Modifying these options has an influence on the extension of a graph visualization, so if you do not want to reduce the scale of a graph with dialog View/Scale..., you can reduce the font size or the node distances here to get a smaller visualization.

After changing the dimensions, the graph layout has to be recalculated to deal with new node extensions, but the order of nodes is preserved. This way, interactive fine tuning of a graph layout is usually lost. So, be sure to set the final dimensions before starting with serious fine tuning. By selecting a smaller or larger font size, the other dimensions in this window are also adjusted to keep the layout proportional.

The layout dimension dialog window can also be used mouseless with keyboard operations.

Dialog Items of the Layout Dimensions Window

• Size (pt)
  Setting the font size in the visualization of a graph by choosing a value between 6 point and 34 point from the option button. Changing the font size will also adjust the other dimensions in this window to keep the layout proportional. The font family and style cannot be selected interactively in daVinci. This is determined by the node attributes in the term representation of a graph.

• Gap Width
  Setting the minimal horizontal distance between nodes at the levels (horizontal for top-down and bottom-up layouts, vertical otherwise).

• Gap Height
  Setting the minimal vertical distance between the levels (vertical for top-down and bottom-up layouts, horizontal otherwise).

• Gap Width (Multi-Edges)
  Setting the gap which is used for drawing multi-edges.

• Radius
  Setting the radius which is used for drawing self-edges.

• Apply
  Push button to accept the current settings of this dialog window. Without pressing Apply, modifications to these options are not considered by daVinci.

• Cancel
  Push button to close the layout dimensions dialog without performing any action.

• Reset
  Push button to undo any modification to these options unless Apply is not pressed. So Reset goes back to the current settings.

• Help
  Push button to start the online help system with this page.
