oETCS::DF::CControlFlow::CState Class Reference

state class within a control flow More...

#include <ControlFlow.h>

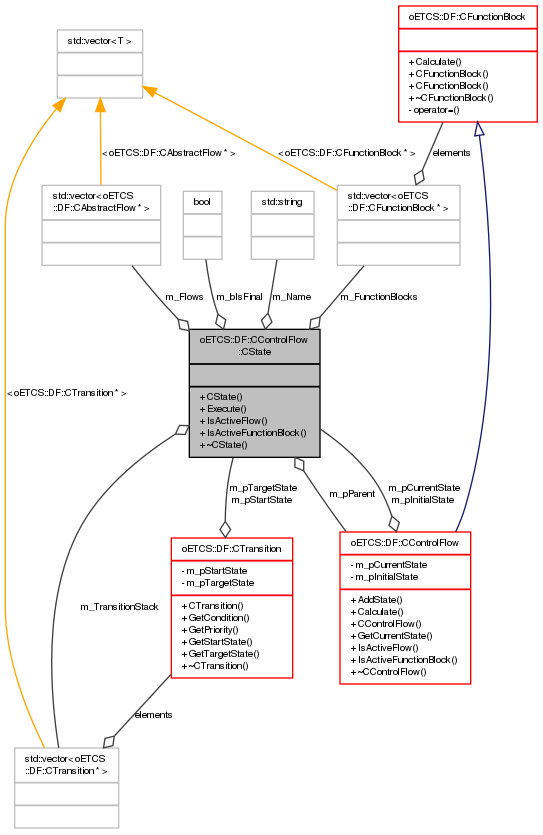

Collaboration diagram for oETCS::DF::CControlFlow::CState:

Public Member Functions
	CState (CControlFlow *const pParent, const std::string &StateName, const ::std::vector< oETCS::DF::CFunctionBlock * > &FunctionBlocks, const ::std::vector< oETCS::DF::CAbstractFlow * > &Flows, const bool &bIsFinal=false, const bool &bIsInitial=false) throw ()
	general constructor
void	Execute () throw (::oETCS::DF::Error::CException)
	executes the state including data flow and possible transitions
bool	IsActiveFlow (const oETCS::DF::CAbstractFlow *const pFlow) const throw ()
	returns true, if a CFlow object is active in a control flow
bool	IsActiveFunctionBlock (const oETCS::DF::CFunctionBlock *const pFunctionBlock) const throw ()
	returns true, if a CFunctionBlock objects is active in a control flow
virtual	~CState () throw ()

Public Attributes
const bool	m_bIsFinal
	flag for a final state
const ::std::string	m_Name
	literal name of the state

Private Attributes
::std::vector < oETCS::DF::CAbstractFlow * >	m_Flows
	vector with pointer to all flows/connections used in a control flow state
const ::std::vector < oETCS::DF::CFunctionBlock * >	m_FunctionBlocks
	vector with pointers to all function block objects, which are executed in a state
CControlFlow *const	m_pParent
	pointer to the parent control flow object
::std::vector < oETCS::DF::CTransition * >	m_TransitionStack
	vector with pointers to transition objects, which were activated

Friends
class	oETCS::DF::CCondition

Detailed Description

state class within a control flow

Definition at line 58 of file ControlFlow.h.

Constructor & Destructor Documentation

oETCS::DF::CControlFlow::CState::CState	(	CControlFlow *const	pParent,
		const std::string &	StateName,
		const ::std::vector< oETCS::DF::CFunctionBlock * > &	FunctionBlocks,
		const ::std::vector< oETCS::DF::CAbstractFlow * > &	Flows,
		const bool &	bIsFinal = false,
		const bool &	bIsInitial = false
	)		throw ()

general constructor

Parameterises the state with all constant members. The data flow object takes over the posession of the passed data flow object.

Parameters

[in]	pParent	pointer to the parent control flow object
[in]	StateName	literal name of the state
[in]	FunctionBlocks	vector with pointers to function blocks, which are executed by this state
[in]	Flows	vector with pointer to flow objects, which connect function blocks in this state
[in]	bIsFinal	optinal flag for a final state
[in]	bIsFinal	optinal flag for the initial state

Definition at line 36 of file ControlFlow.cpp.

oETCS::DF::CControlFlow::CState::~CState ( ) throw ()

virtual

Definition at line 59 of file ControlFlow.cpp.

Member Function Documentation

void oETCS::DF::CControlFlow::CState::Execute

(

)

throw (::oETCS::DF::Error::CException)

executes the state including data flow and possible transitions

Definition at line 143 of file ControlFlow.cpp.

Referenced by oETCS::DF::CControlFlow::Calculate().

Here is the caller graph for this function:

bool oETCS::DF::CControlFlow::CState::IsActiveFlow

(

const oETCS::DF::CAbstractFlow *const

pFlow

)

const throw ()

returns true, if a CFlow object is active in a control flow

Parameters

[in]

pFlow

pointer to a concerete flow object

Returns

active flow flag

Definition at line 104 of file ControlFlow.cpp.

References oETCS::DF::CControlFlow::IsActiveFlow().

Referenced by oETCS::DF::CControlFlow::IsActiveFlow().

Here is the call graph for this function:

Here is the caller graph for this function:

bool oETCS::DF::CControlFlow::CState::IsActiveFunctionBlock

(

const oETCS::DF::CFunctionBlock *const

pFunctionBlock

)

const throw ()

returns true, if a CFunctionBlock objects is active in a control flow

Parameters

[in]

pFunctionBlock

pointer to a function block object to be testetd

Returns

active state flag

Definition at line 70 of file ControlFlow.cpp.

References oETCS::DF::CControlFlow::IsActiveFunctionBlock().

Referenced by oETCS::DF::CControlFlow::IsActiveFunctionBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class oETCS::DF::CCondition

friend

Definition at line 153 of file ControlFlow.h.

Member Data Documentation

const bool oETCS::DF::CControlFlow::CState::m_bIsFinal

flag for a final state

Definition at line 119 of file ControlFlow.h.

::std::vector< oETCS::DF::CAbstractFlow* > oETCS::DF::CControlFlow::CState::m_Flows

private

vector with pointer to all flows/connections used in a control flow state

Definition at line 149 of file ControlFlow.h.

const ::std::vector< oETCS::DF::CFunctionBlock* > oETCS::DF::CControlFlow::CState::m_FunctionBlocks

private

vector with pointers to all function block objects, which are executed in a state

Definition at line 142 of file ControlFlow.h.

const ::std::string oETCS::DF::CControlFlow::CState::m_Name

literal name of the state

Definition at line 112 of file ControlFlow.h.

Referenced by oETCS::DF::CControlFlow::Calculate().

CControlFlow* const oETCS::DF::CControlFlow::CState::m_pParent

private

pointer to the parent control flow object

Definition at line 128 of file ControlFlow.h.

::std::vector< oETCS::DF::CTransition* > oETCS::DF::CControlFlow::CState::m_TransitionStack

private

vector with pointers to transition objects, which were activated

Definition at line 135 of file ControlFlow.h.

---

The documentation for this class was generated from the following files:

• ControlFlow.h
• ControlFlow.cpp
