oETCS::DF::CControlFlow Class Reference

control flow (state machine) class used in a data flow More...

#include <ControlFlow.h>

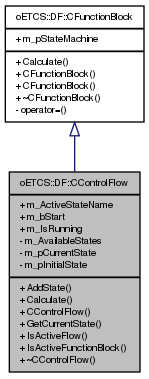

Inheritance diagram for oETCS::DF::CControlFlow:

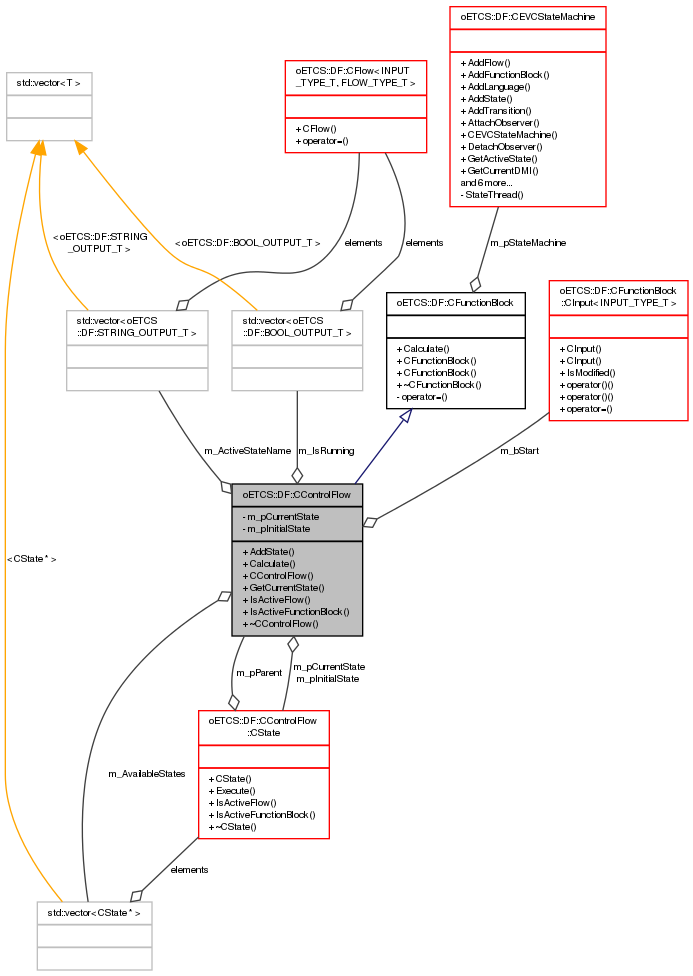

Collaboration diagram for oETCS::DF::CControlFlow:

Classes
class	CState
	state class within a control flow More...

Public Member Functions
void	AddState (CState *const pState, const bool &bIsInitial) throw ()
	registers a new state object in a control flow
virtual void	Calculate () throw (::oETCS::DF::Error::CException)
	virtual method for computing all outputs and setting the all referenced outputs
	CControlFlow (oETCS::DF::CEVCStateMachine *const pStateMachine) throw ()
	general constructor
CState *const	GetCurrentState () const throw ()
	gets the current state of the control flow
bool	IsActiveFlow (const oETCS::DF::CAbstractFlow *const pFlow) const throw ()
	returns true, if a CFlow object is active in a control flow
bool	IsActiveFunctionBlock (const oETCS::DF::CFunctionBlock *const pFunctionBlock) const throw ()
	returns true, if a CFunctionBlock objects is active in a control flow
virtual	~CControlFlow () throw ()
	destructor

Public Attributes
::std::vector < oETCS::DF::STRING_OUTPUT_T >	m_ActiveStateName
	pointers to outputs for active state name
oETCS::DF::BOOL_INPUT_T	m_bStart
	storage of the start input value
::std::vector < oETCS::DF::BOOL_OUTPUT_T >	m_IsRunning
	pointers to outputs for running flag
oETCS::DF::CEVCStateMachine *const	m_pStateMachine
	pointer to the all contenting EVC state machine

Private Attributes
::std::vector< CState * >	m_AvailableStates
	vector with pointers to all available states in the control flow
CState *	m_pCurrentState
	pointer to current active state
CState *	m_pInitialState
	pointer to the unique initial state object

Detailed Description

control flow (state machine) class used in a data flow

Definition at line 52 of file ControlFlow.h.

Constructor & Destructor Documentation

oETCS::DF::CControlFlow::CControlFlow ( oETCS::DF::CEVCStateMachine *const  pStateMachine ) throw ()

explicit

general constructor

Parameters

[in]

pStateMachine

pointer to the contenting state machine

Definition at line 229 of file ControlFlow.cpp.

oETCS::DF::CControlFlow::~CControlFlow ( ) throw ()

virtual

destructor

Definition at line 244 of file ControlFlow.cpp.

References m_AvailableStates.

Member Function Documentation

void oETCS::DF::CControlFlow::AddState	(	CState *const	pState,
		const bool &	bIsInitial
	)		throw ()

registers a new state object in a control flow

Parameters

[in]	pState	pointer to state object to be registered
[in]	bIsInitial	optional flag, if state is the initial state

Definition at line 264 of file ControlFlow.cpp.

References m_AvailableStates, and m_pInitialState.

void oETCS::DF::CControlFlow::Calculate ( ) throw (::oETCS::DF::Error::CException)

virtual

virtual method for computing all outputs and setting the all referenced outputs

Remarks

must be implemented by any inheriting class

Implements oETCS::DF::CFunctionBlock.

Definition at line 347 of file ControlFlow.cpp.

References oETCS::DF::CControlFlow::CState::Execute(), m_ActiveStateName, m_bStart, m_IsRunning, oETCS::DF::CControlFlow::CState::m_Name, m_pCurrentState, and m_pInitialState.

Here is the call graph for this function:

oETCS::DF::CControlFlow::CState *const oETCS::DF::CControlFlow::GetCurrentState

(

)

const throw ()

gets the current state of the control flow

Returns

pointer to the current state object

Definition at line 335 of file ControlFlow.cpp.

References m_pCurrentState.

bool oETCS::DF::CControlFlow::IsActiveFlow

(

const oETCS::DF::CAbstractFlow *const

pFlow

)

const throw ()

returns true, if a CFlow object is active in a control flow

Parameters

[in]

pFlow

pointer to a concerete flow object

Returns

active flow flag

Definition at line 312 of file ControlFlow.cpp.

References oETCS::DF::CControlFlow::CState::IsActiveFlow(), and m_pCurrentState.

Referenced by oETCS::DF::CControlFlow::CState::IsActiveFlow(), and oETCS::DF::CEVCStateMachine::CEVCState::CDataFlow::IsActiveFlow().

Here is the call graph for this function:

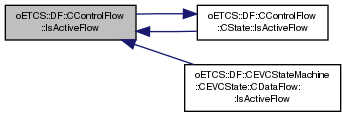

Here is the caller graph for this function:

bool oETCS::DF::CControlFlow::IsActiveFunctionBlock

(

const oETCS::DF::CFunctionBlock *const

pFunctionBlock

)

const throw ()

returns true, if a CFunctionBlock objects is active in a control flow

Parameters

[in]

pFunctionBlock

pointer to a function block object to be testetd

Returns

active state flag

Definition at line 289 of file ControlFlow.cpp.

References oETCS::DF::CControlFlow::CState::IsActiveFunctionBlock(), and m_pCurrentState.

Referenced by oETCS::DF::CControlFlow::CState::IsActiveFunctionBlock().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

::std::vector< oETCS::DF::STRING_OUTPUT_T > oETCS::DF::CControlFlow::m_ActiveStateName

pointers to outputs for active state name

Definition at line 234 of file ControlFlow.h.

Referenced by Calculate(), and oETCS::UT::CControlFlow::setUp().

::std::vector< CState* > oETCS::DF::CControlFlow::m_AvailableStates

private

vector with pointers to all available states in the control flow

Definition at line 250 of file ControlFlow.h.

Referenced by AddState(), and ~CControlFlow().

oETCS::DF::BOOL_INPUT_T oETCS::DF::CControlFlow::m_bStart

storage of the start input value

Definition at line 227 of file ControlFlow.h.

Referenced by Calculate(), and oETCS::UT::CControlFlow::setUp().

::std::vector< oETCS::DF::BOOL_OUTPUT_T > oETCS::DF::CControlFlow::m_IsRunning

pointers to outputs for running flag

Definition at line 241 of file ControlFlow.h.

Referenced by Calculate(), and oETCS::UT::CControlFlow::setUp().

CState* oETCS::DF::CControlFlow::m_pCurrentState

private

pointer to current active state

Definition at line 257 of file ControlFlow.h.

Referenced by Calculate(), GetCurrentState(), IsActiveFlow(), and IsActiveFunctionBlock().

CState* oETCS::DF::CControlFlow::m_pInitialState

private

pointer to the unique initial state object

Definition at line 264 of file ControlFlow.h.

Referenced by AddState(), and Calculate().

oETCS::DF::CEVCStateMachine* const oETCS::DF::CFunctionBlock::m_pStateMachine

inherited

pointer to the all contenting EVC state machine

Definition at line 894 of file EVCStateMachine.h.

Referenced by oETCS::DF::CCondition::Calculate(), and oETCS::DF::CDMIOutput::Calculate().

---

The documentation for this class was generated from the following files:

• ControlFlow.h
• ControlFlow.cpp
