EVC state class executed by the EVC state machine. More...

#include <EVCStateMachine.h>

Collaboration diagram for oETCS::DF::CEVCStateMachine::CEVCState:

Classes
class	CDataFlow
	data flow class for executing data flows and embedded control flows More...

Public Member Functions
void	AddDataFlow (const std::string &ApplicationLevel, CDataFlow *const pDataFlow) throw ()
	register a new data flow object
void	AddTransition (oETCS::DF::CTransition *const pTransition) throw ()
	register a new transition object
	CEVCState (CEVCStateMachine *const pParent) throw ()
	general constructor
::std::vector< CDataFlow * >	GetCurrentDataFlow () const throw ()
	gets the current data flow
::std::vector < oETCS::DF::CTransition * >	GetTransitions () const throw ()
	gets all transisiton objects in this state
bool	IsActiveFlow (oETCS::DF::CAbstractFlow *const pFlow) const throw ()
	returns true, if a CFlowobjects is active in an EVC state
bool	IsActiveFunctionBlock (oETCS::DF::CFunctionBlock *const pFunctionBlock) const throw ()
	returns true, if a CFunctionBlock objects is active in an EVC state
bool	IsRunning () const throw ()
	returns the running flag
void	Start () throw (::oETCS::DF::Error::CException)
	starts the permanent execution of the related data flow
void	Stop () throw ()
	stops the execution the data flow by the underlying CFunctionBlock objects
virtual	~CEVCState () throw ()
	destructor

Public Attributes
CEVCStateMachine *const	m_pParent
	pointer to the parent EVC state machine

Private Member Functions
void	DataFlowThread (const unsigned int &iIndex) throw ()
	thread method/function for executing one data flow

Private Attributes
::std::condition_variable	m_Barrier
	condition variable as barrier for data flow syncronisation
bool	m_bStateLevelSwitch
	flag for a state and/or level switch within the EVC state machine
::std::vector< CDataFlow * >	m_CurrentDataFlow
	vector of pointers to the currently executed data flows
::std::vector < ::oETCS::DF::Error::CException >	m_DataFlowExceptions
	vector of exception thrown by data flow exections within threads
::std::map< std::string,::std::vector < CDataFlow * > >	m_DataFlows
	map of vectors of data flows in a certain EVC state indexed by the related application level
unsigned int	m_iLockedThreads
	number of currently locked threads.
::std::vector< ::std::thread * >	m_Threads
	vector of thread objects for data flow execution
::std::vector < oETCS::DF::CTransition * >	m_Transitions
	vector with pointers to all state transition within the current data flow
::std::vector< const oETCS::DF::CEVCTransition * >	m_TransitionStack
	vector with pointers to EVC transition objects, which were activated

Friends
class	oETCS::DF::CEVCCondition
class	oETCS::DF::CLevelCondition

Detailed Description

EVC state class executed by the EVC state machine.

Is a nested class to gain direct access to its parent class.

Definition at line 79 of file EVCStateMachine.h.

Constructor & Destructor Documentation

oETCS::DF::CEVCStateMachine::CEVCState::CEVCState ( CEVCStateMachine *const pParent ) throw ()

general constructor

Parameterises the EVC state with all constant members. The EVC state object takes over the posession of all variables/memory passed by pointer.

Parameters

[in] pParent pointer to the parent EVC state machine object

Definition at line 223 of file EVCStateMachine.cpp.

References oETCS::DF::CEVCStateMachine::AddState(), and m_pParent.

Here is the call graph for this function:

oETCS::DF::CEVCStateMachine::CEVCState::~CEVCState ( ) throw ()

virtual

destructor

Definition at line 245 of file EVCStateMachine.cpp.

References IsRunning(), m_DataFlows, m_Transitions, and Stop().

Here is the call graph for this function:

Member Function Documentation

void oETCS::DF::CEVCStateMachine::CEVCState::AddDataFlow	(	const std::string &	ApplicationLevel,
		CDataFlow *const	pDataFlow
	)		throw ()

register a new data flow object

Parameters

[in]	ApplicationLevel	literal name of the related application level
[in]	pDataFlow	pointer to the data flow object to be registered

Definition at line 570 of file EVCStateMachine.cpp.

References m_DataFlows.

void oETCS::DF::CEVCStateMachine::CEVCState::AddTransition ( oETCS::DF::CTransition *const pTransition ) throw ()

register a new transition object

Parameters

[in] pTransition pointer to the transition object to be registered

Definition at line 587 of file EVCStateMachine.cpp.

References m_Transitions.

void oETCS::DF::CEVCStateMachine::CEVCState::DataFlowThread ( const unsigned int & iIndex ) throw ()

private

thread method/function for executing one data flow

Parameters

[in] iIndex index corresponding to the vector referenced by m_pCurrentDataFlow

Definition at line 604 of file EVCStateMachine.cpp.

References __DATA_FLOW_SAMPLE_TIME__, m_Barrier, oETCS::DF::CEnteredTrigger::m_bEnteredState, m_bStateLevelSwitch, m_CurrentDataFlow, m_DataFlowExceptions, m_iLockedThreads, oETCS::DF::CEVCStateMachine::m_pCurrentState, m_pParent, m_Threads, and m_TransitionStack.

Referenced by Start().

Here is the caller graph for this function:

std::vector< oETCS::DF::CEVCStateMachine::CEVCState::CDataFlow * > oETCS::DF::CEVCStateMachine::CEVCState::GetCurrentDataFlow ( ) const throw ()

gets the current data flow

Returns: vector with pointers to all independent data flow objects

Definition at line 558 of file EVCStateMachine.cpp.

References m_CurrentDataFlow.

Referenced by oETCS::DF::CCondition::Calculate(), and oETCS::DF::CEVCStateMachine::GetCurrentDMI().

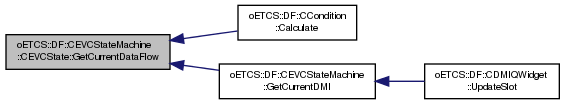

Here is the caller graph for this function:

std::vector< oETCS::DF::CTransition * > oETCS::DF::CEVCStateMachine::CEVCState::GetTransitions ( ) const throw ()

gets all transisiton objects in this state

Returns: vector with pointers to transition objects

Definition at line 546 of file EVCStateMachine.cpp.

References m_Transitions.

Referenced by oETCS::DF::CCondition::Calculate().

Here is the caller graph for this function:

bool oETCS::DF::CEVCStateMachine::CEVCState::IsActiveFlow ( oETCS::DF::CAbstractFlow *const pFlow ) const throw ()

returns true, if a CFlowobjects is active in an EVC state

Parameters

[in] pFlow pointer to the concrete CFlow object to be testetd

Returns: active state flag

Definition at line 520 of file EVCStateMachine.cpp.

References m_CurrentDataFlow.

bool oETCS::DF::CEVCStateMachine::CEVCState::IsActiveFunctionBlock ( oETCS::DF::CFunctionBlock *const pFunctionBlock ) const throw ()

returns true, if a CFunctionBlock objects is active in an EVC state

Parameters

[in] pFunctionBlock pointer to a function block object to be testetd

Returns: active state flag

Definition at line 494 of file EVCStateMachine.cpp.

References m_CurrentDataFlow.

Referenced by oETCS::DF::CEVCStateMachine::CEVCState::CDataFlow::IsActiveFunctionBlock().

Here is the caller graph for this function:

bool oETCS::DF::CEVCStateMachine::CEVCState::IsRunning ( ) const throw ()

returns the running flag

Returns: true, if is executing

Definition at line 482 of file EVCStateMachine.cpp.

References m_CurrentDataFlow.

Referenced by Start(), oETCS::DF::CEVCStateMachine::Start(), Stop(), oETCS::DF::CEVCStateMachine::Stop(), ~CEVCState(), and oETCS::DF::CEVCStateMachine::~CEVCStateMachine().

Here is the caller graph for this function:

void oETCS::DF::CEVCStateMachine::CEVCState::Start ( ) throw (::oETCS::DF::Error::CException)

starts the permanent execution of the related data flow

If the number of independent CDataFLow objects for the current application level is greater than 1, this method will start for each additional group a additinal thread, while this method always is blocking. If a CEVCState is executed under the same parent CEVCStateMachine object, this will be stopped before by its CEVCState::Stop() method.

Definition at line 290 of file EVCStateMachine.cpp.

References DataFlowThread(), IsRunning(), oETCS::DF::CEnteredTrigger::m_bEnteredState, m_bStateLevelSwitch, oETCS::DF::CEVCStateMachine::m_CurrentApplicationLevel, m_CurrentDataFlow, m_DataFlowExceptions, m_DataFlows, m_iLockedThreads, m_pParent, m_Threads, and oETCS::DF::CEVCStateMachine::Notify().

Referenced by oETCS::DF::CEVCStateMachine::StateThread().

Here is the call graph for this function:

Here is the caller graph for this function:

void oETCS::DF::CEVCStateMachine::CEVCState::Stop ( ) throw ()

stops the execution the data flow by the underlying CFunctionBlock objects

In the case of more than 1 group of independent CDatatFlow objects this method terminates all related threads by wating for the current execution sample to finish.

Definition at line 438 of file EVCStateMachine.cpp.

References IsRunning(), m_bStateLevelSwitch, and m_Threads.

Referenced by oETCS::DF::CEVCStateMachine::Stop(), ~CEVCState(), and oETCS::DF::CEVCStateMachine::~CEVCStateMachine().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class oETCS::DF::CEVCCondition

friend

Definition at line 394 of file EVCStateMachine.h.

friend class oETCS::DF::CLevelCondition

friend

Definition at line 395 of file EVCStateMachine.h.

Member Data Documentation

::std::condition_variable oETCS::DF::CEVCStateMachine::CEVCState::m_Barrier

private

condition variable as barrier for data flow syncronisation

Definition at line 369 of file EVCStateMachine.h.

Referenced by DataFlowThread().

bool oETCS::DF::CEVCStateMachine::CEVCState::m_bStateLevelSwitch

private

flag for a state and/or level switch within the EVC state machine

Definition at line 318 of file EVCStateMachine.h.

Referenced by DataFlowThread(), oETCS::DF::CEVCStateMachine::CEVCState::CDataFlow::Execute(), Start(), and Stop().

::std::vector< CDataFlow* > oETCS::DF::CEVCStateMachine::CEVCState::m_CurrentDataFlow

private

vector of pointers to the currently executed data flows

Definition at line 362 of file EVCStateMachine.h.

Referenced by DataFlowThread(), GetCurrentDataFlow(), IsActiveFlow(), IsActiveFunctionBlock(), IsRunning(), and Start().

::std::vector< ::oETCS::DF::Error::CException > oETCS::DF::CEVCStateMachine::CEVCState::m_DataFlowExceptions

private

vector of exception thrown by data flow exections within threads

Definition at line 383 of file EVCStateMachine.h.

Referenced by DataFlowThread(), and Start().

::std::map< std::string, ::std::vector< CDataFlow* > > oETCS::DF::CEVCStateMachine::CEVCState::m_DataFlows

private

map of vectors of data flows in a certain EVC state indexed by the related application level

Each vector holds a set of CDataFlow objects for a certain application level, which are independent from each other and therefore can be executed in parallel.

Definition at line 348 of file EVCStateMachine.h.

Referenced by AddDataFlow(), Start(), and ~CEVCState().

unsigned int oETCS::DF::CEVCStateMachine::CEVCState::m_iLockedThreads

private

number of currently locked threads.

Used in combination of m_Barrier to syncronise all data flow threads.

Definition at line 327 of file EVCStateMachine.h.

Referenced by DataFlowThread(), and Start().

CEVCStateMachine* const oETCS::DF::CEVCStateMachine::CEVCState::m_pParent

pointer to the parent EVC state machine

Definition at line 336 of file EVCStateMachine.h.

Referenced by CEVCState(), DataFlowThread(), oETCS::DF::CEVCStateMachine::CEVCState::CDataFlow::Execute(), and Start().
