oETCS::DF::CEmergencyBrake Class Reference

super class for ememgerncy brake implementations More...

#include <PlatformSpecificClientsMOC.h>

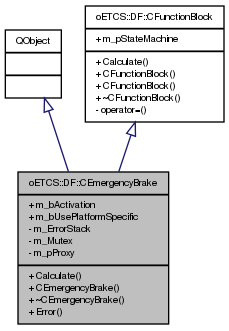

Inheritance diagram for oETCS::DF::CEmergencyBrake:

Collaboration diagram for oETCS::DF::CEmergencyBrake:

Public Slots
void	Error (const QString &ErrorMessage)
	informs the stub about an error ocurred in the PS part

Public Member Functions
virtual void	Calculate () throw (::oETCS::DF::Error::CException)
	method for computing all outputs
	CEmergencyBrake (oETCS::DF::CEVCStateMachine *pStateMachine, const bool &bUsePS=false) throw ()
	general constructor
virtual	~CEmergencyBrake () throw ()
	destructor

Public Attributes
oETCS::DF::BOOL_INPUT_T	m_bActivation
	storage of the activation flag
const bool	m_bUsePlatformSpecific
	flag for the usage of a platform specific implmentation via D-Bus
oETCS::DF::CEVCStateMachine *const	m_pStateMachine
	pointer to the all contenting EVC state machine

Private Attributes
::std::vector< ::std::string >	m_ErrorStack
	stack with error messages from the platform specific adaptor implementation
::std::recursive_mutex	m_Mutex
	muteable exclusion object
oETCS::DF::IEmergencyBrake *	m_pProxy

Detailed Description

super class for ememgerncy brake implementations

Definition at line 299 of file PlatformSpecificClientsMOC.h.

Constructor & Destructor Documentation

oETCS::DF::CEmergencyBrake::CEmergencyBrake ( oETCS::DF::CEVCStateMachine *  pStateMachine, const bool &  bUsePS = false  ) throw ()

explicit

general constructor

Parameters

[in]	pStateMachine	pointer to the parent EVC state machine object
[in]	bUsePS	optional flag for the usage of the platform specifc implementation via D-Bus

Definition at line 468 of file PlatformSpecificClientsMOC.cpp.

oETCS::DF::CEmergencyBrake::~CEmergencyBrake ( ) throw ()

virtual

destructor

Definition at line 522 of file PlatformSpecificClientsMOC.cpp.

References m_bUsePlatformSpecific, and m_pProxy.

Member Function Documentation

void oETCS::DF::CEmergencyBrake::Calculate ( ) throw (::oETCS::DF::Error::CException)

virtual

method for computing all outputs

Remarks

must be (re)implemented for all emergency brake implementations

Implements oETCS::DF::CFunctionBlock.

Definition at line 539 of file PlatformSpecificClientsMOC.cpp.

References m_bActivation, m_bUsePlatformSpecific, m_ErrorStack, m_Mutex, and m_pProxy.

void oETCS::DF::CEmergencyBrake::Error ( const QString &  ErrorMessage )

slot

informs the stub about an error ocurred in the PS part

Remarks

this method should be called by a platform specific implementation

Parameters

[in]

ErrorMessage

textual description of the error

Member Data Documentation

oETCS::DF::BOOL_INPUT_T oETCS::DF::CEmergencyBrake::m_bActivation

storage of the activation flag

Definition at line 347 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate().

const bool oETCS::DF::CEmergencyBrake::m_bUsePlatformSpecific

flag for the usage of a platform specific implmentation via D-Bus

Definition at line 354 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate(), and ~CEmergencyBrake().

::std::vector< ::std::string > oETCS::DF::CEmergencyBrake::m_ErrorStack

private

stack with error messages from the platform specific adaptor implementation

Definition at line 363 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate().

::std::recursive_mutex oETCS::DF::CEmergencyBrake::m_Mutex

private

muteable exclusion object

Definition at line 374 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate().

oETCS::DF::IEmergencyBrake* oETCS::DF::CEmergencyBrake::m_pProxy

private

Definition at line 367 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate(), and ~CEmergencyBrake().

oETCS::DF::CEVCStateMachine* const oETCS::DF::CFunctionBlock::m_pStateMachine

inherited

pointer to the all contenting EVC state machine

Definition at line 894 of file EVCStateMachine.h.

Referenced by oETCS::DF::CCondition::Calculate(), and oETCS::DF::CDMIOutput::Calculate().

---

The documentation for this class was generated from the following files:

• PlatformSpecificClientsMOC.h
• PlatformSpecificClientsMOC.cpp
