oETCS::DF::CServiceBrake Class Reference

super class for service brake implementations More...

#include <PlatformSpecificClientsMOC.h>

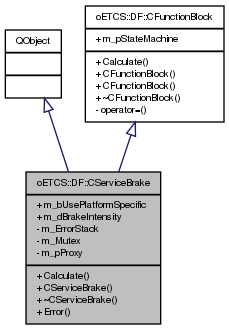

Inheritance diagram for oETCS::DF::CServiceBrake:

Collaboration diagram for oETCS::DF::CServiceBrake:

Public Slots
void	Error (const QString &ErrorMessage)
	informs the stub about an error ocurred in the PS part

Public Member Functions
virtual void	Calculate () throw (::oETCS::DF::Error::CException)
	method for computing all outputs
	CServiceBrake (oETCS::DF::CEVCStateMachine *const pStateMachine, const bool &bUsePS=false) throw ()
	general constructor
virtual	~CServiceBrake () throw ()
	destructor

Public Attributes
const bool	m_bUsePlatformSpecific
	flag for the usage of a platform specific implmentation via D-Bus
oETCS::DF::DOUBLE_INPUT_T	m_dBrakeIntensity
	storage of the brake intensity value
oETCS::DF::CEVCStateMachine *const	m_pStateMachine
	pointer to the all contenting EVC state machine

Private Attributes
::std::vector< ::std::string >	m_ErrorStack
	stack with error messages from the platform specific adaptor implementation
::std::recursive_mutex	m_Mutex
	muteable exclusion object
oETCS::DF::IServiceBrake *	m_pProxy
	pointer to the proxy object

Detailed Description

super class for service brake implementations

Definition at line 483 of file PlatformSpecificClientsMOC.h.

Constructor & Destructor Documentation

oETCS::DF::CServiceBrake::CServiceBrake ( oETCS::DF::CEVCStateMachine *const  pStateMachine, const bool &  bUsePS = false  ) throw ()

explicit

general constructor

Parameters

[in]	pStateMachine	pointer to the parent EVC state machine object
[in]	bUsePS	optional flag for the usage of the platform specifc implementation via D-Bus

Definition at line 821 of file PlatformSpecificClientsMOC.cpp.

oETCS::DF::CServiceBrake::~CServiceBrake ( ) throw ()

virtual

destructor

Definition at line 876 of file PlatformSpecificClientsMOC.cpp.

References m_bUsePlatformSpecific, and m_pProxy.

Member Function Documentation

void oETCS::DF::CServiceBrake::Calculate ( ) throw (::oETCS::DF::Error::CException)

virtual

method for computing all outputs

Remarks

must be implemented for all service brake implementations

Implements oETCS::DF::CFunctionBlock.

Definition at line 893 of file PlatformSpecificClientsMOC.cpp.

References m_bUsePlatformSpecific, m_dBrakeIntensity, m_ErrorStack, m_Mutex, and m_pProxy.

void oETCS::DF::CServiceBrake::Error ( const QString &  ErrorMessage )

slot

informs the stub about an error ocurred in the PS part

Remarks

this method should be called by a platform specific implementation

Parameters

[in]

ErrorMessage

textual description of the error

Member Data Documentation

const bool oETCS::DF::CServiceBrake::m_bUsePlatformSpecific

flag for the usage of a platform specific implmentation via D-Bus

Definition at line 538 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate(), and ~CServiceBrake().

oETCS::DF::DOUBLE_INPUT_T oETCS::DF::CServiceBrake::m_dBrakeIntensity

storage of the brake intensity value

Definition at line 531 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate().

::std::vector< ::std::string > oETCS::DF::CServiceBrake::m_ErrorStack

private

stack with error messages from the platform specific adaptor implementation

Definition at line 547 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate().

::std::recursive_mutex oETCS::DF::CServiceBrake::m_Mutex

private

muteable exclusion object

Definition at line 561 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate().

oETCS::DF::IServiceBrake* oETCS::DF::CServiceBrake::m_pProxy

private

pointer to the proxy object

Definition at line 554 of file PlatformSpecificClientsMOC.h.

Referenced by Calculate(), and ~CServiceBrake().

oETCS::DF::CEVCStateMachine* const oETCS::DF::CFunctionBlock::m_pStateMachine

inherited

pointer to the all contenting EVC state machine

Definition at line 894 of file EVCStateMachine.h.

Referenced by oETCS::DF::CCondition::Calculate(), and oETCS::DF::CDMIOutput::Calculate().

---

The documentation for this class was generated from the following files:

• PlatformSpecificClientsMOC.h
• PlatformSpecificClientsMOC.cpp
