Driver Machine Interface Qt4 class. More...

#include <DriverMachineInterfaceMOC.h>

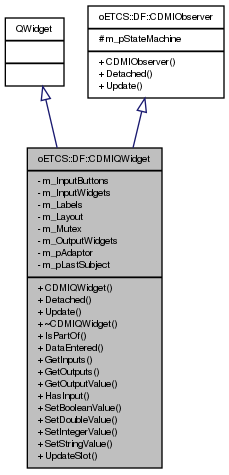

Inheritance diagram for oETCS::DF::CDMIQWidget:

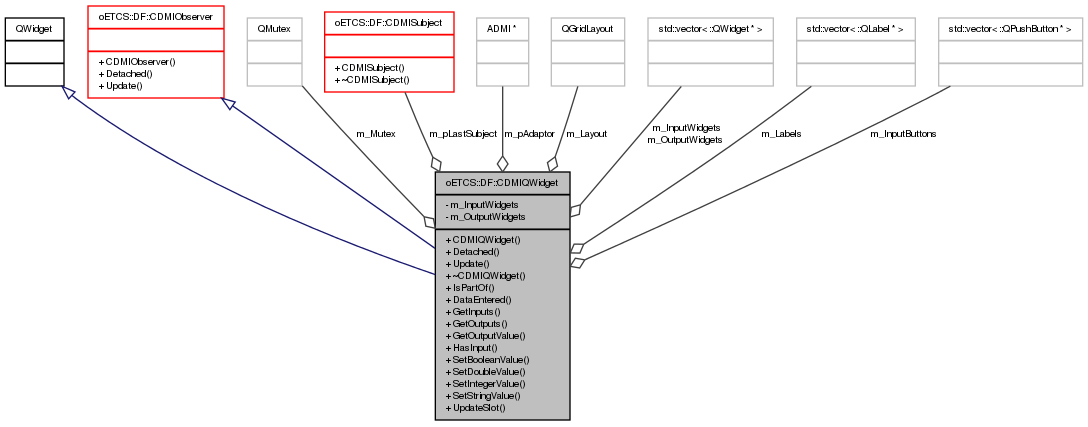

Collaboration diagram for oETCS::DF::CDMIQWidget:

Public Slots
void	DataEntered () throw ()
	slot for notification about entered data
QStringList	GetInputs ()
	gets all active inputs
::QStringList	GetOutputs ()
	gets all available ouputs
QString	GetOutputValue (const QString &OutputName)
	gets a value of a certain output
bool	HasInput ()
	gets the flag for the existence of any input field
void	SetBooleanValue (const QString &InputName, bool bValue)
	sets a value of an boolean input field
void	SetDoubleValue (const QString &InputName, double dValue)
	sets a value of an double input field
void	SetIntegerValue (const QString &InputName, int iValue)
	sets a value of an integer input field
void	SetStringValue (const QString &InputName, const QString &Value)
	sets a value of an string input field
virtual void	UpdateSlot () throw ()
	slot after a Update() message from the EVC State Machine

Signals
void	Error (const ::QString &ErrorMessage)
	signal for sending an error
void	Updated ()
	signal emited, if a Update() message from the EVC state machine was received

Public Member Functions
	CDMIQWidget (oETCS::DF::CEVCStateMachine const pStateMachine, QWidget pWidgetParent=0, const bool &bSimAdaptor=false) throw ()
	general constructor
virtual void	Detached () throw ()
	notifies an observer about it was detached by the EVC state machine
virtual void	Update () throw ()
	updates the observer representation
virtual	~CDMIQWidget () throw ()
	destructor

Static Public Member Functions
template<class ELEMENT_T , class CONTAINER_T = ::std::vector< ELEMENT_T >>
static bool	IsPartOf (const ELEMENT_T &Element, const CONTAINER_T &Container) throw ()
	checks, if an element is part of an vector

Protected Attributes
oETCS::DF::CEVCStateMachine *const	m_pStateMachine
	pointer to the related state machine

Private Attributes
::std::vector< ::QPushButton * >	m_InputButtons
	vector of pointer to all push buttons to submit entered data by the driver
::std::vector< ::QWidget * >	m_InputWidgets
	vector with pointers to all input widgets
::std::vector< ::QLabel * >	m_Labels
	vector with pointers to labels used for inputs and outputs in grid layout
::QGridLayout	m_Layout
	layout object of the Dialog
::QMutex	m_Mutex
	mutable exclusion for setting DMI values while subject changes
::std::vector< ::QWidget * >	m_OutputWidgets
	vector with pointers to all output widgets
::ADMI *	m_pAdaptor
	pointer to the DMI adaptor object (used for simulation only)
oETCS::DF::CDMISubject *	m_pLastSubject
	poniter to the last subject used in Update().

Detailed Description

Driver Machine Interface Qt4 class.

Observer implementation as Qt4 QWidget.

Definition at line 62 of file DriverMachineInterfaceMOC.h.

Constructor & Destructor Documentation

oETCS::DF::CDMIQWidget::CDMIQWidget	(	oETCS::DF::CEVCStateMachine *const	pStateMachine,
		QWidget *	pWidgetParent = `0`,
		const bool &	bSimAdaptor = `false`
	)		throw ()

explicit

general constructor

Attaches the concrete Qt4 observer to a EVC state machine object.

Parameters

[in]	pStateMachine	pointer to the related state machine
[in]	pWidgetParent	optional pointer to the parent QWidget object
[in]	bSimAdaptor	optional flag to actiavate instance as D-Bus adaptor for simulation

Definition at line 36 of file DriverMachineInterfaceMOC.cpp.

oETCS::DF::CDMIQWidget::~CDMIQWidget ( ) throw ()

virtual

destructor

Definition at line 100 of file DriverMachineInterfaceMOC.cpp.

References m_InputButtons, m_InputWidgets, m_Labels, m_Layout, m_OutputWidgets, and m_pAdaptor.

Member Function Documentation

void oETCS::DF::CDMIQWidget::DataEntered ( ) throw ()

slot

slot for notification about entered data

Definition at line 199 of file DriverMachineInterfaceMOC.cpp.

References oETCS::DF::BOOL, oETCS::DF::DOUBLE, oETCS::DF::DOUBLE_ARRAY, oETCS::DF::INT, IsPartOf(), oETCS::DF::CDMIInput::m_AllowedBoolInputs, oETCS::DF::CDMIInput::m_AllowedDoubleInputs, oETCS::DF::CDMIInput::m_AllowedIntInputs, oETCS::DF::CDMIInput::m_AllowedStringInputs, m_InputButtons, oETCS::DF::CDMISubject::m_Inputs, m_InputWidgets, m_Mutex, m_pLastSubject, and oETCS::DF::STRING.

Referenced by UpdateSlot().

Here is the call graph for this function:

Here is the caller graph for this function:

void oETCS::DF::CDMIQWidget::Detached ( ) throw ()

virtual

notifies an observer about it was detached by the EVC state machine

In the implementation for the Qt observer this cause a closing of the QWidget.

Implements oETCS::DF::CDMIObserver.

Definition at line 187 of file DriverMachineInterfaceMOC.cpp.

void oETCS::DF::CDMIQWidget::Error ( const ::QString & ErrorMessage )

signal

signal for sending an error

This signal should be emitted in the case that an error in the HW ocurres.

Parameters

[in] ErrorMessage textual description of the error

QStringList oETCS::DF::CDMIQWidget::GetInputs ( )

slot

gets all active inputs

Returns: list of active/enabled inputs

Definition at line 691 of file DriverMachineInterfaceMOC.cpp.

References m_InputWidgets, m_Labels, and m_OutputWidgets.

Referenced by HasInput().

Here is the caller graph for this function:

QStringList oETCS::DF::CDMIQWidget::GetOutputs ( )

slot

gets all available ouputs

Returns: list of all all outputs

Definition at line 736 of file DriverMachineInterfaceMOC.cpp.

References m_Labels, m_Mutex, and m_OutputWidgets.

QString oETCS::DF::CDMIQWidget::GetOutputValue ( const QString & OutputName )

slot

gets a value of a certain output

Parameters

[in] OutputName name of the output field

Returns: output value

Definition at line 773 of file DriverMachineInterfaceMOC.cpp.

References m_InputWidgets, m_Labels, m_Mutex, and m_OutputWidgets.

bool oETCS::DF::CDMIQWidget::HasInput ( )

slot

gets the flag for the existence of any input field

Returns: true, if any input field exists

Definition at line 836 of file DriverMachineInterfaceMOC.cpp.

References GetInputs().

Here is the call graph for this function:

template<class ELEMENT_T , class CONTAINER_T >

bool oETCS::DF::CDMIQWidget::IsPartOf	(	const ELEMENT_T &	Element,
		const CONTAINER_T &	Container
	)		throw ()

inlinestatic

checks, if an element is part of an vector

Parameters

[in]	Element	element to be searched in container
[in]	Container	container to be searched in

Returns: true, if element is found

Definition at line 293 of file DriverMachineInterfaceMOC.h.

Referenced by DataEntered().

Here is the caller graph for this function:

void oETCS::DF::CDMIQWidget::SetBooleanValue	(	const QString &	InputName,
		bool	bValue
	)

slot

sets a value of an boolean input field

Parameters

[in]	InputName	name of the input field
[in]	bValue	new value

Definition at line 854 of file DriverMachineInterfaceMOC.cpp.

References m_InputButtons, m_InputWidgets, m_Labels, m_Mutex, and m_OutputWidgets.

void oETCS::DF::CDMIQWidget::SetDoubleValue	(	const QString &	InputName,
		double	dValue
	)

slot

sets a value of an double input field

Parameters

[in]	InputName	name of the input field
[in]	dValue	new value

Definition at line 938 of file DriverMachineInterfaceMOC.cpp.

References m_InputButtons, m_InputWidgets, m_Labels, m_Mutex, and m_OutputWidgets.

void oETCS::DF::CDMIQWidget::SetIntegerValue	(	const QString &	InputName,
		int	iValue
	)

slot

sets a value of an integer input field

Parameters

[in]	InputName	name of the input field
[in]	iValue	new value

Definition at line 1022 of file DriverMachineInterfaceMOC.cpp.

References m_InputButtons, m_InputWidgets, m_Labels, m_Mutex, and m_OutputWidgets.

void oETCS::DF::CDMIQWidget::SetStringValue	(	const QString &	InputName,
		const QString &	Value
	)

slot

sets a value of an string input field

Parameters

[in]	InputName	name of the input field
[in]	Value	new value

Definition at line 1095 of file DriverMachineInterfaceMOC.cpp.

References m_InputButtons, m_InputWidgets, m_Labels, m_Mutex, and m_OutputWidgets.

void oETCS::DF::CDMIQWidget::Update ( ) throw ()

virtual

updates the observer representation

Implements oETCS::DF::CDMIObserver.

Definition at line 175 of file DriverMachineInterfaceMOC.cpp.

References Updated().

Here is the call graph for this function:

void oETCS::DF::CDMIQWidget::Updated ( )

signal

signal emited, if a Update() message from the EVC state machine was received

Referenced by Update().

Here is the caller graph for this function:

void oETCS::DF::CDMIQWidget::UpdateSlot ( ) throw ()

virtualslot

slot after a Update() message from the EVC State Machine

Remarks: connected with the Updated() signal due to multi threading

Definition at line 407 of file DriverMachineInterfaceMOC.cpp.

References oETCS::DF::BOOL, DataEntered(), oETCS::DF::DOUBLE, oETCS::DF::DOUBLE_ARRAY, oETCS::DF::CEVCStateMachine::GetCurrentDMI(), oETCS::DF::INT, oETCS::DF::CDMIOutput::m_DoubleArrayMessage, m_InputButtons, oETCS::DF::CDMISubject::m_Inputs, m_InputWidgets, m_Labels, m_Layout, m_Mutex, oETCS::DF::CDMISubject::m_Outputs, m_OutputWidgets, m_pLastSubject, oETCS::DF::CDMIObserver::m_pStateMachine, and oETCS::DF::STRING.

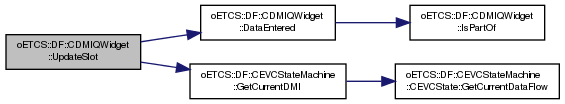

Here is the call graph for this function:

Member Data Documentation

::std::vector< ::QPushButton* > oETCS::DF::CDMIQWidget::m_InputButtons

private

vector of pointer to all push buttons to submit entered data by the driver

Definition at line 278 of file DriverMachineInterfaceMOC.h.

Referenced by DataEntered(), SetBooleanValue(), SetDoubleValue(), SetIntegerValue(), SetStringValue(), UpdateSlot(), and ~CDMIQWidget().

::std::vector< ::QWidget* > oETCS::DF::CDMIQWidget::m_InputWidgets

private

vector with pointers to all input widgets

Definition at line 257 of file DriverMachineInterfaceMOC.h.

Referenced by DataEntered(), GetInputs(), GetOutputValue(), SetBooleanValue(), SetDoubleValue(), SetIntegerValue(), SetStringValue(), UpdateSlot(), and ~CDMIQWidget().

::std::vector< ::QLabel* > oETCS::DF::CDMIQWidget::m_Labels

private

vector with pointers to labels used for inputs and outputs in grid layout

Definition at line 250 of file DriverMachineInterfaceMOC.h.

Referenced by GetInputs(), GetOutputs(), GetOutputValue(), SetBooleanValue(), SetDoubleValue(), SetIntegerValue(), SetStringValue(), UpdateSlot(), and ~CDMIQWidget().

::QGridLayout oETCS::DF::CDMIQWidget::m_Layout

private

layout object of the Dialog

Definition at line 243 of file DriverMachineInterfaceMOC.h.

Referenced by UpdateSlot(), and ~CDMIQWidget().

::QMutex oETCS::DF::CDMIQWidget::m_Mutex

private

mutable exclusion for setting DMI values while subject changes

Definition at line 285 of file DriverMachineInterfaceMOC.h.

Referenced by DataEntered(), GetOutputs(), GetOutputValue(), SetBooleanValue(), SetDoubleValue(), SetIntegerValue(), SetStringValue(), and UpdateSlot().

::std::vector< ::QWidget* > oETCS::DF::CDMIQWidget::m_OutputWidgets

private

vector with pointers to all output widgets

Definition at line 264 of file DriverMachineInterfaceMOC.h.

Referenced by GetInputs(), GetOutputs(), GetOutputValue(), SetBooleanValue(), SetDoubleValue(), SetIntegerValue(), SetStringValue(), UpdateSlot(), and ~CDMIQWidget().

::ADMI* oETCS::DF::CDMIQWidget::m_pAdaptor

private

pointer to the DMI adaptor object (used for simulation only)

Definition at line 236 of file DriverMachineInterfaceMOC.h.

Referenced by ~CDMIQWidget().

oETCS::DF::CDMISubject* oETCS::DF::CDMIQWidget::m_pLastSubject

private

poniter to the last subject used in Update().

Definition at line 271 of file DriverMachineInterfaceMOC.h.

Referenced by DataEntered(), and UpdateSlot().

oETCS::DF::CEVCStateMachine* const oETCS::DF::CDMIObserver::m_pStateMachine

protectedinherited

pointer to the related state machine

Definition at line 1526 of file EVCStateMachine.h.

Referenced by UpdateSlot().

The documentation for this class was generated from the following files:
