XML syntax tree transformer for the GOPPRR meta meta model. More...

#include <GOPPRRTransformer.h>

Inheritance diagram for DSM::CGOPPRRTransformer:

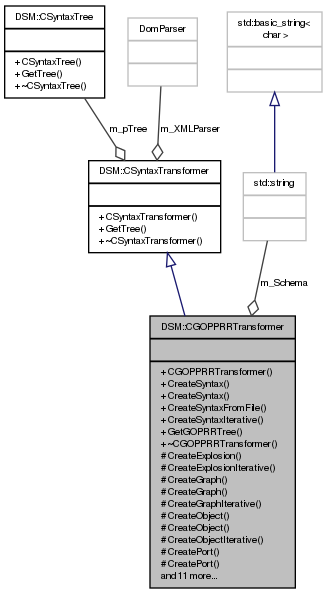

Collaboration diagram for DSM::CGOPPRRTransformer:

Public Member Functions
	CGOPPRRTransformer () throw ()
void	CreateSyntax (::std::fstream &ModelFileStream, GOPPRR::CGraph *&pRootGraph) throw (DSM::Error::CException)
	creates a GOPRR syntax tree
void	CreateSyntax (const ::std::string &Model, GOPPRR::CGraph *&pRootGraph) throw (DSM::Error::CException)
	creates a GOPRR syntax tree
void	CreateSyntaxFromFile (const ::std::string &ModelFileName, GOPPRR::CGraph *&pRootGraph) throw (DSM::Error::CException)
	creates a GOPRR syntax tree
void	CreateSyntaxIterative (const ::std::string &Model, GOPPRR::CGraph *&pRootGraph) throw (DSM::Error::CException)
	creates a GOPRR syntax tree
::DSM::CGOPPRRSyntaxTree *	GetGOPRRTree () const throw ()
	gets GOPRR syntax tree
::DSM::CSyntaxTree *	GetTree () const throw ()
	gets pointer to generated syntax tree
virtual	~CGOPPRRTransformer () throw ()
	destructor

Static Protected Member Functions
static void	CreateExplosion (::xmlpp::Element pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships, std::map< ::std::string,::GOPPRR::CGraph > &Explosions) throw (DSM::Error::CException)
	internal helper method
static void	CreateExplosionIterative (::xmlpp::Element pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships, std::map< ::std::string,::GOPPRR::CGraph > &Explosions) throw (DSM::Error::CException)
	internal helper method
static void	CreateGraph (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships, bool &bRoot) throw (DSM::Error::CException)
	internal helper method
static void	CreateGraph (const ::std::string &OID,::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships, bool &bRoot) throw (DSM::Error::CException)
	internal helper method
static void	CreateGraphIterative (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships, bool &bRoot) throw (DSM::Error::CException)
	internal helper method
static void	CreateObject (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateObject (const ::std::string &OID,::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateObjectIterative (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreatePort (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreatePort (const ::std::string &OID,::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreatePortIterative (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateProperty (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateProperty (const ::std::string &OID,::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreatePropertyIterative (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateRelationship (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateRelationship (const ::std::string &OID,::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateRelationshipIterative (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateRole (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateRole (const ::std::string &OID,::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
static void	CreateRoleIterative (::xmlpp::Element *pXMLElement, std::map< ::std::string,::GOPPRR::CGraph > &Graphs, std::map< ::std::string,::GOPPRR::CObject > &Objects, std::map< ::std::string,::GOPPRR::CProperty > &Properties, std::map< ::std::string,::GOPPRR::CPort > &Ports, std::map< ::std::string,::GOPPRR::CRole > &Roles, std::map< ::std::string,::GOPPRR::CRelationship > &Relationships) throw (DSM::Error::CException)
	internal helper method
::xmlpp::Element *	FindElementByXPath (const ::xmlpp::Element *pXMLElement, const ::std::string &XPath, const ::std::string &OID) throw ()
	internal helper method

Protected Attributes
::DSM::CSyntaxTree *	m_pTree
	pointer to syntax tree
::xmlpp::DomParser	m_XMLParser
	parser object

Static Private Attributes
::std::string	m_Schema = reinterpret_cast< const char* const >(pGOPPRRXMLSchema)
	XML schema for validation of GOPPRR model files.

Detailed Description

XML syntax tree transformer for the GOPPRR meta meta model.

Definition at line 60 of file GOPPRRTransformer.h.

Constructor & Destructor Documentation

DSM::CGOPPRRTransformer::CGOPPRRTransformer ( ) throw ()

default constructor

Definition at line 33 of file GOPPRRTransformer.cpp.

DSM::CGOPPRRTransformer::~CGOPPRRTransformer ( ) throw ()

virtual

destructor

Definition at line 44 of file GOPPRRTransformer.cpp.

Member Function Documentation

void DSM::CGOPPRRTransformer::CreateExplosion	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships,
		std::map< ::std::string,::GOPPRR::CGraph * > &	Explosions
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a map of GOPRR::CGraph pointers as explosions from a XML element node.

Parameters

[in]	pXMLElement,:	pointer to current XML element <gopprr explosions>=""> object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project
[out]	Explosions	set of graph reference as current exlosions

Definition at line 3101 of file GOPPRRTransformer.cpp.

References CreateGraph().

Referenced by CreateObject(), CreateRelationship(), and CreateRole().

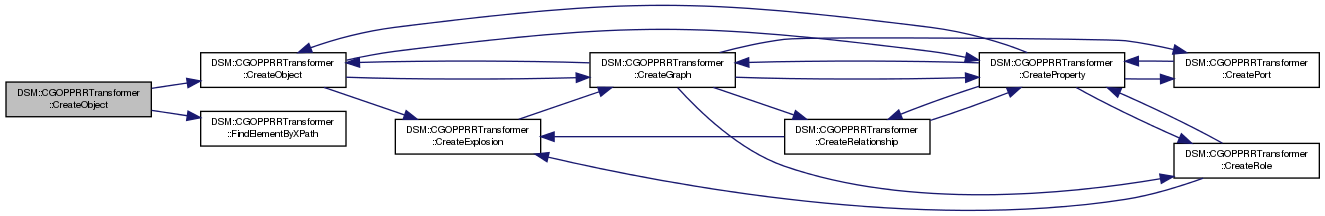

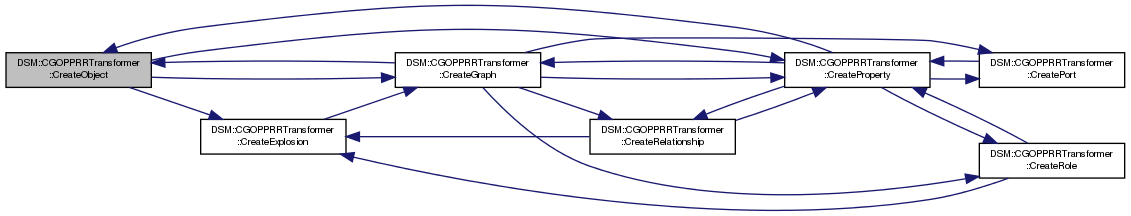

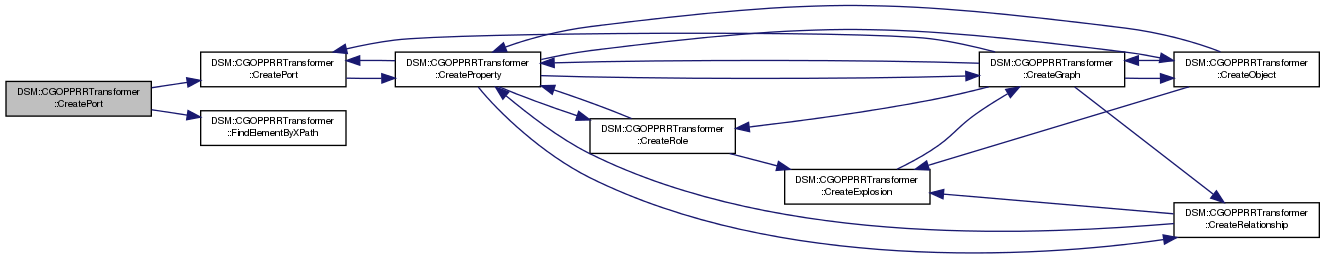

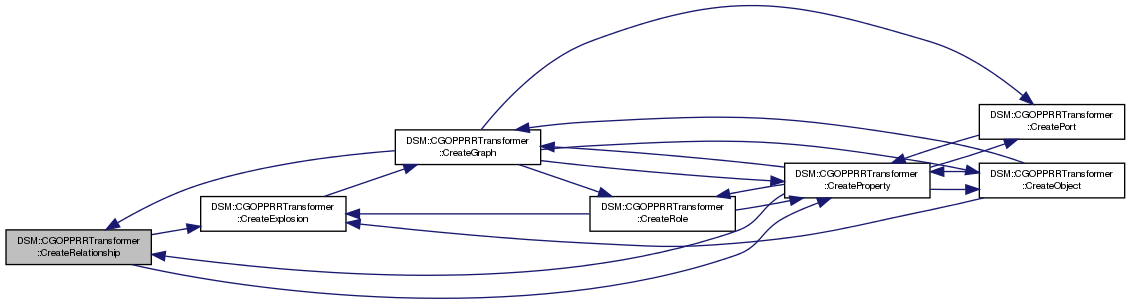

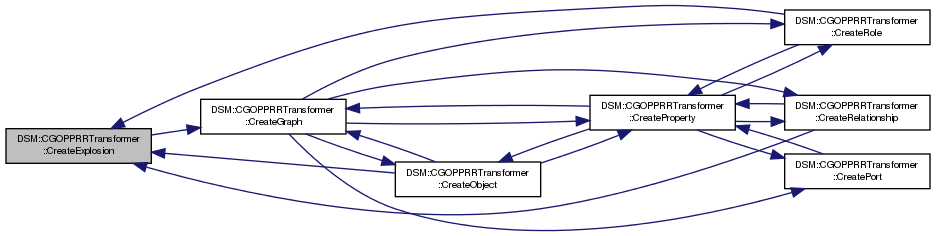

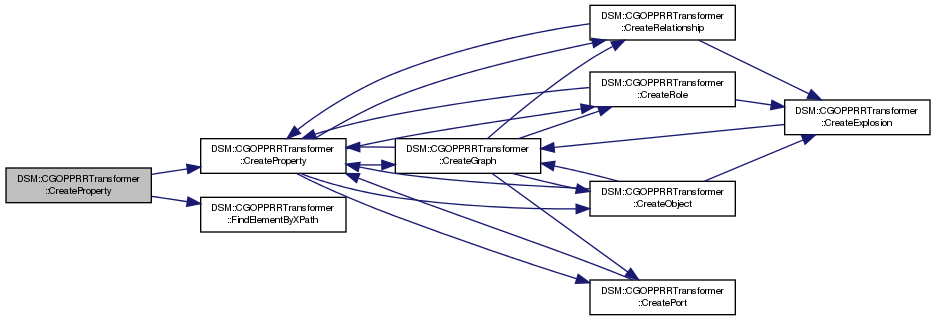

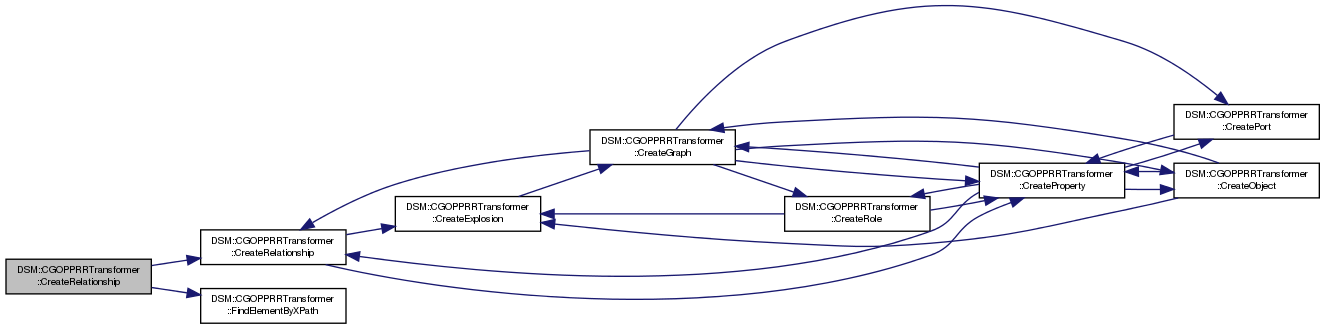

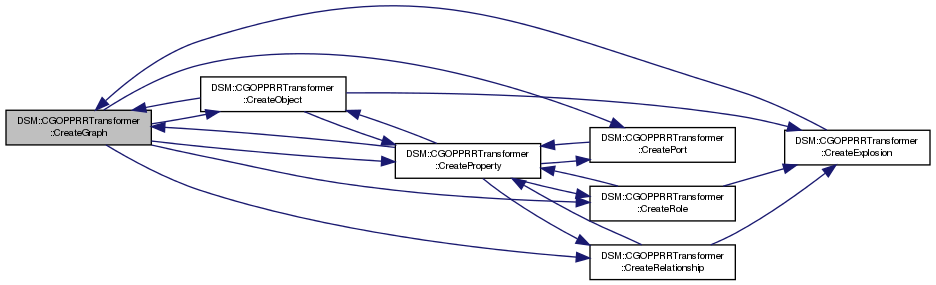

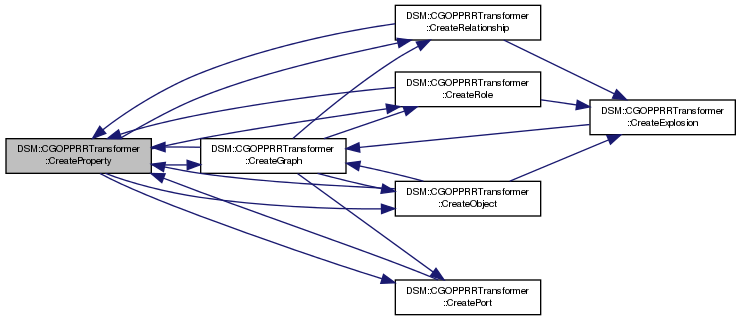

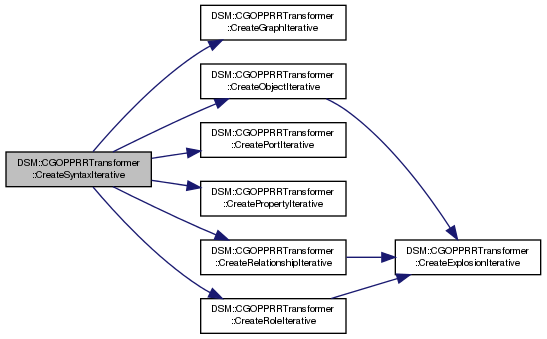

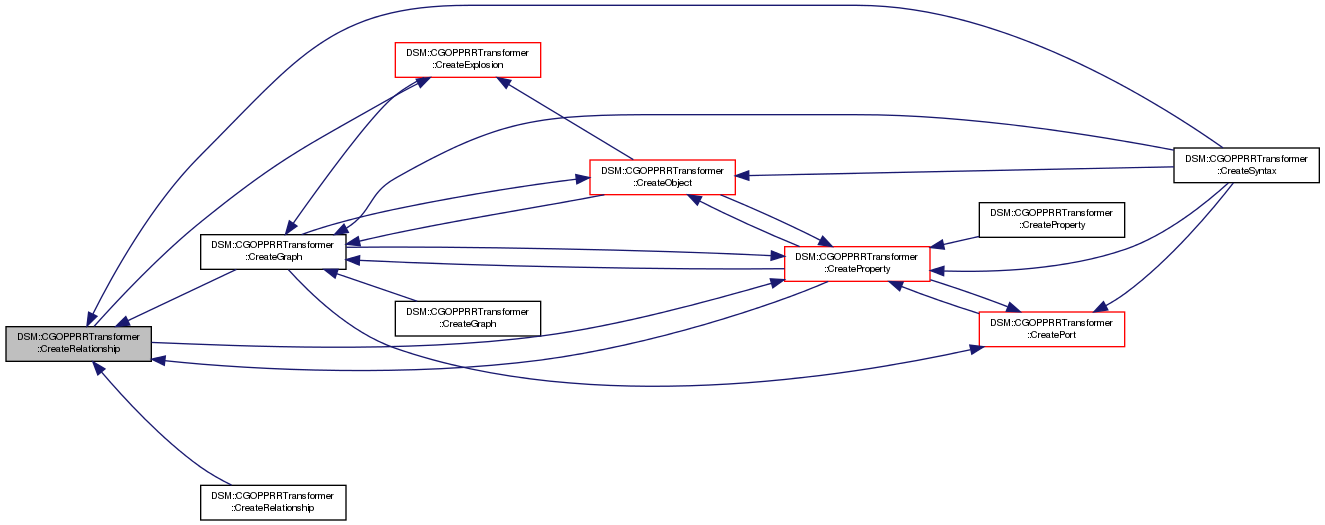

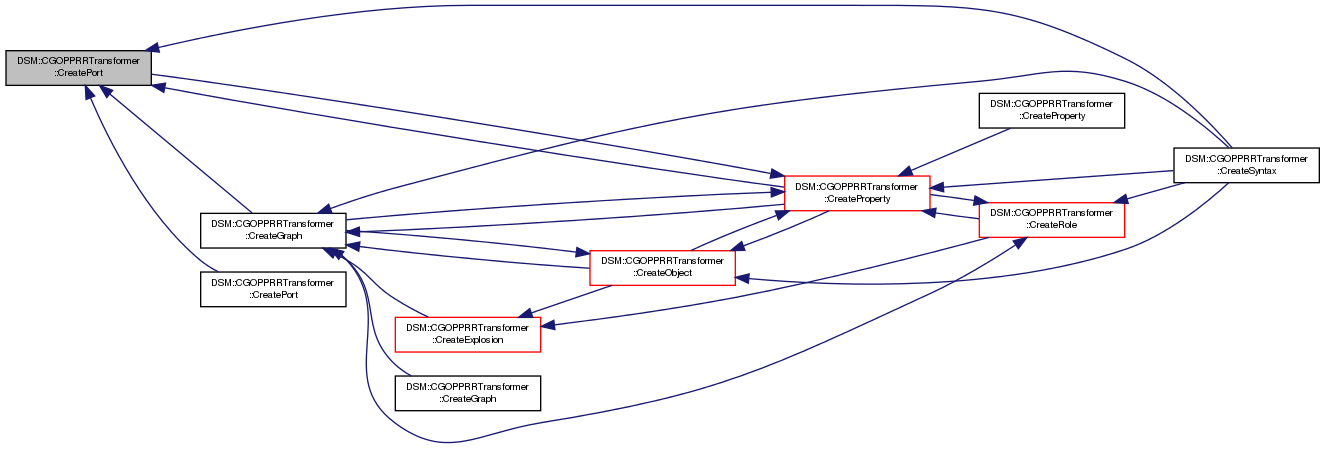

Here is the call graph for this function:

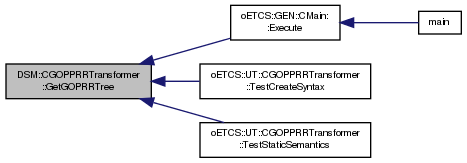

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateExplosionIterative	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships,
		std::map< ::std::string,::GOPPRR::CGraph * > &	Explosions
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a map of GOPRR::CGraph pointers as explosions from a XML element node.

Parameters

[in]	pXMLElement,:	pointer to current XML element <gopprr explosions>=""> object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project
[out]	Explosions	set of graph reference as current exlosions

Definition at line 1144 of file GOPPRRTransformer.cpp.

Referenced by CreateObjectIterative(), CreateRelationshipIterative(), and CreateRoleIterative().

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateGraph	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships,
		bool &	bRoot
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CGraph object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object/graph
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project
[out]	bRoot	flag, if graph is root graph

Definition at line 1868 of file GOPPRRTransformer.cpp.

References CreateObject(), CreatePort(), CreateProperty(), CreateRelationship(), and CreateRole().

Referenced by CreateExplosion(), CreateGraph(), CreateObject(), CreateProperty(), and CreateSyntax().

Here is the call graph for this function:

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateGraph	(	const ::std::string &	OID,
		::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships,
		bool &	bRoot
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CGraph object from a XML element node, if it does not exist yet.

Parameters

[in]	OID	object identifier of object
[in]	pXMLElement	pointer current XML element
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project
[out]	bRoot	flag, if graph is root graph

Definition at line 2258 of file GOPPRRTransformer.cpp.

References CreateGraph(), and FindElementByXPath().

Here is the call graph for this function:

void DSM::CGOPPRRTransformer::CreateGraphIterative	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships,
		bool &	bRoot
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CGraph object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object/graph
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project
[out]	bRoot	flag, if graph is root graph

Definition at line 1508 of file GOPPRRTransformer.cpp.

Referenced by CreateSyntaxIterative().

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateObject	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CObject object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project

Definition at line 2297 of file GOPPRRTransformer.cpp.

References CreateExplosion(), CreateGraph(), and CreateProperty().

Referenced by CreateGraph(), CreateObject(), CreateProperty(), and CreateSyntax().

Here is the call graph for this function:

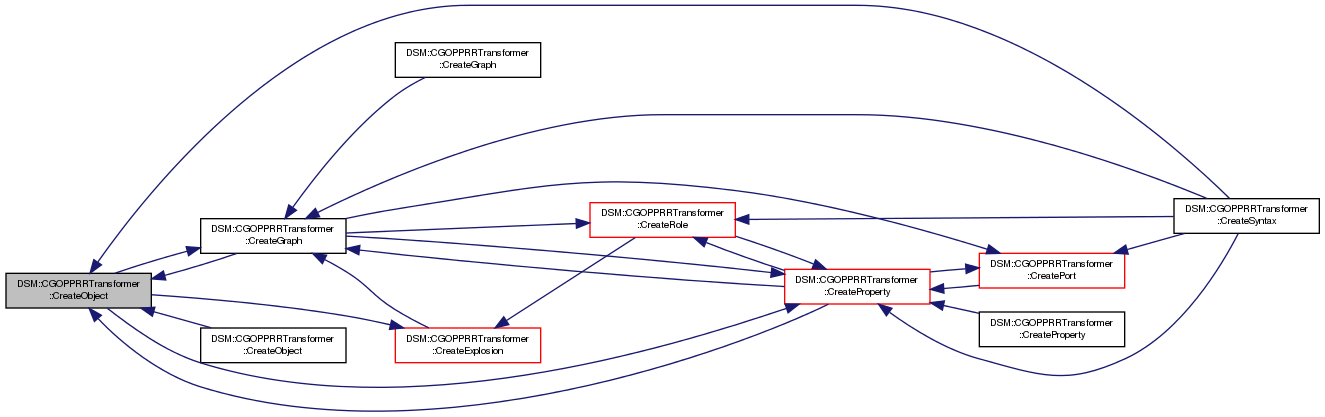

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateObject	(	const ::std::string &	OID,
		::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CObject object from a XML element node, if it does not exist yet.

Parameters

[in]	OID	object identifier of object
[in]	pXMLElement	pointer current XML element
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 2467 of file GOPPRRTransformer.cpp.

References CreateObject(), and FindElementByXPath().

Here is the call graph for this function:

void DSM::CGOPPRRTransformer::CreateObjectIterative	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CObject object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project

Definition at line 965 of file GOPPRRTransformer.cpp.

References CreateExplosionIterative().

Referenced by CreateSyntaxIterative().

Here is the call graph for this function:

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreatePort	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CPort object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 2507 of file GOPPRRTransformer.cpp.

References CreateProperty().

Referenced by CreateGraph(), CreatePort(), CreateProperty(), and CreateSyntax().

Here is the call graph for this function:

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreatePort	(	const ::std::string &	OID,
		::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CPort object from a XML element node, if it does not exist yet.

Parameters

[in]	OID	object identifier of object
[in]	pXMLElement	pointer current XML element
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 2599 of file GOPPRRTransformer.cpp.

References CreatePort(), and FindElementByXPath().

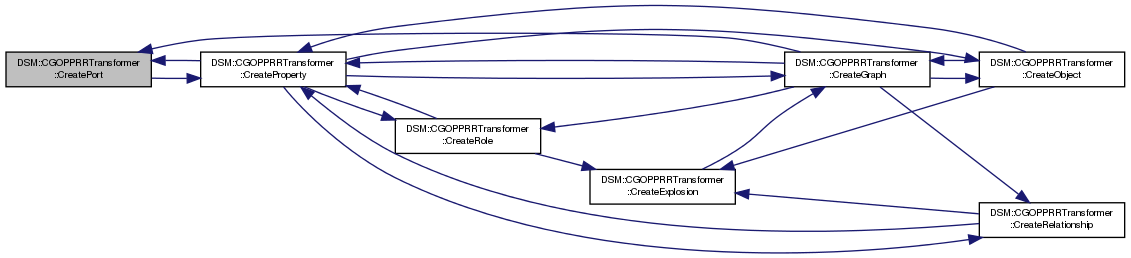

Here is the call graph for this function:

void DSM::CGOPPRRTransformer::CreatePortIterative	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CPort object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 1213 of file GOPPRRTransformer.cpp.

Referenced by CreateSyntaxIterative().

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateProperty	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CProperty object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 2638 of file GOPPRRTransformer.cpp.

References CreateGraph(), CreateObject(), CreatePort(), CreateRelationship(), and CreateRole().

Referenced by CreateGraph(), CreateObject(), CreatePort(), CreateProperty(), CreateRelationship(), CreateRole(), and CreateSyntax().

Here is the call graph for this function:

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateProperty	(	const ::std::string &	OID,
		::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CProperty object from a XML element node, if it does not exist yet.

Parameters

[in]	OID	object identifier of object
[in]	pXMLElement	pointer current XML element
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 2777 of file GOPPRRTransformer.cpp.

References CreateProperty(), and FindElementByXPath().

Here is the call graph for this function:

void DSM::CGOPPRRTransformer::CreatePropertyIterative	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CProperty object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 845 of file GOPPRRTransformer.cpp.

Referenced by CreateSyntaxIterative().

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateRelationship	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CRelationship object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 2959 of file GOPPRRTransformer.cpp.

References CreateExplosion(), and CreateProperty().

Referenced by CreateGraph(), CreateProperty(), CreateRelationship(), and CreateSyntax().

Here is the call graph for this function:

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateRelationship	(	const ::std::string &	OID,
		::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CRelationship object from a XML element node, if it does not exist yet.

Parameters

[in]	OID	object identifier of object
[in]	pXMLElement	pointer current XML element
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 3062 of file GOPPRRTransformer.cpp.

References CreateRelationship(), and FindElementByXPath().

Here is the call graph for this function:

void DSM::CGOPPRRTransformer::CreateRelationshipIterative	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CRelationship object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 1404 of file GOPPRRTransformer.cpp.

References CreateExplosionIterative().

Referenced by CreateSyntaxIterative().

Here is the call graph for this function:

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateRole	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CRole object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 2816 of file GOPPRRTransformer.cpp.

References CreateExplosion(), and CreateProperty().

Referenced by CreateGraph(), CreateProperty(), CreateRole(), and CreateSyntax().

Here is the call graph for this function:

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateRole	(	const ::std::string &	OID,
		::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CRole object from a XML element node, if it does not exist yet.

Parameters

[in]	OID	object identifier of object
[in]	pXMLElement	pointer current XML element
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 2920 of file GOPPRRTransformer.cpp.

References CreateRole(), and FindElementByXPath().

Here is the call graph for this function:

void DSM::CGOPPRRTransformer::CreateRoleIterative	(	::xmlpp::Element *	pXMLElement,
		std::map< ::std::string,::GOPPRR::CGraph > &	Graphs,
		std::map< ::std::string,::GOPPRR::CObject > &	Objects,
		std::map< ::std::string,::GOPPRR::CProperty > &	Properties,
		std::map< ::std::string,::GOPPRR::CPort > &	Ports,
		std::map< ::std::string,::GOPPRR::CRole > &	Roles,
		std::map< ::std::string,::GOPPRR::CRelationship > &	Relationships
	)		throw (DSM::Error::CException)

staticprotected

internal helper method

Internal helper method for creating a GOPRR::CRole object from a XML element node.

Parameters

[in]	pXMLElement	pointer to current XML element object
	inout]	Graphs set of graphs in current project
	inout]	Objects: set of objects in current project
	inout]	Properties set of properties in current project
	inout]	Ports set of ports in current project
	inout]	Roles set of roles in current project
	inout]	Relationships set of relationships in current project

Definition at line 1299 of file GOPPRRTransformer.cpp.

References CreateExplosionIterative().

Referenced by CreateSyntaxIterative().

Here is the call graph for this function:

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateSyntax	(	::std::fstream &	ModelFileStream,
		GOPPRR::CGraph *&	pRootGraph
	)		throw (DSM::Error::CException)

creates a GOPRR syntax tree

Creates a GOPPRR syntax tree from a XML model file while using an internalyl stored Schema file for validation. The create syntax tree is stored in m_pTree.

Parameters

[in]	ModelFileName	file stream of the XML model file
[out]	pRootGraph	pointer to root graph, if one exists, else 0

Definition at line 112 of file GOPPRRTransformer.cpp.

void DSM::CGOPPRRTransformer::CreateSyntax	(	const ::std::string &	Model,
		GOPPRR::CGraph *&	pRootGraph
	)		throw (DSM::Error::CException)

creates a GOPRR syntax tree

Creates a GOPPRR syntax tree from a XML model file while using an internalyl stored Schema file for validation. The create syntax tree is stored in m_pTree.

Parameters

[in]	Model	XML model as string
[out]	pRootGraph	pointer to root graph, if one exists, else 0

Definition at line 129 of file GOPPRRTransformer.cpp.

References CreateGraph(), CreateObject(), CreatePort(), CreateProperty(), CreateRelationship(), CreateRole(), GOPPRR::CProject::m_GraphSet, GOPPRR::CProject::m_ObjectSet, GOPPRR::CProject::m_PortSet, GOPPRR::CProject::m_PropertySet, GOPPRR::CProject::m_RelationshipSet, and GOPPRR::CProject::m_RoleSet.

Here is the call graph for this function:

void DSM::CGOPPRRTransformer::CreateSyntaxFromFile	(	const ::std::string &	ModelFileName,
		GOPPRR::CGraph *&	pRootGraph
	)		throw (DSM::Error::CException)

creates a GOPRR syntax tree

Creates a GOPPRR syntax tree from a XML model file while using an internalyl stored Schema file for validation. The create syntax tree is stored in m_pTree.

Parameters

[in]	ModelFileName	file name of the XML model file
[out]	pRootGraph	pointer to root graph, if one exists, else 0

Definition at line 67 of file GOPPRRTransformer.cpp.

Referenced by oETCS::GEN::CMain::Execute(), oETCS::UT::CGOPPRRTransformer::TestCreateSyntax(), oETCS::UT::CGenerator::TestGenerateCpp(), and oETCS::UT::CGOPPRRTransformer::TestStaticSemantics().

Here is the caller graph for this function:

void DSM::CGOPPRRTransformer::CreateSyntaxIterative	(	const ::std::string &	Model,
		GOPPRR::CGraph *&	pRootGraph
	)		throw (DSM::Error::CException)

creates a GOPRR syntax tree

Creates a GOPPRR syntax tree from a XML model file while using an internalyl stored Schema file for validation. The create syntax tree is stored in m_pTree.

Remarks: this methods works itereative and not recursive

Parameters

[in]	Model	XML model as string
[out]	pRootGraph	pointer to root graph, if one exists, else 0

Definition at line 348 of file GOPPRRTransformer.cpp.

References CreateGraphIterative(), CreateObjectIterative(), CreatePortIterative(), CreatePropertyIterative(), CreateRelationshipIterative(), CreateRoleIterative(), GOPPRR::CObject::m_Explosions, GOPPRR::CProject::m_GraphSet, GOPPRR::CProperty::m_NonProperties, GOPPRR::CProject::m_ObjectSet, GOPPRR::CProject::m_PortSet, GOPPRR::CProject::m_PropertySet, GOPPRR::CProject::m_RelationshipSet, and GOPPRR::CProject::m_RoleSet.

Here is the call graph for this function:

xmlpp::Element * DSM::CGOPPRRTransformer::FindElementByXPath	(	const ::xmlpp::Element *	pXMLElement,
		const ::std::string &	XPath,
		const ::std::string &	OID
	)		throw ()
