class for holding variable values More...

#include <Language.h>

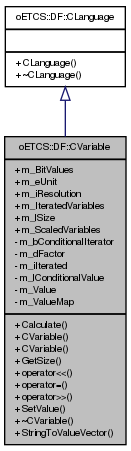

Inheritance diagram for oETCS::DF::CVariable:

Collaboration diagram for oETCS::DF::CVariable:

Public Types
enum	UNIT_T { SECONDS = 0, KILO_METERS_PER_HOUR = 1, METERS = 2, CENTI_METERS = 3, PER_MILL = 4, INTEGER = 5, DOUBLE = 6, STRING = 7 }
	enum type for the physical unit type of a variable More...

Public Member Functions
void	Calculate () throw (::oETCS::DF::Error::CException)
	calculates the value
	CVariable (oETCS::DF::CEVCStateMachine const pStateMachine, const unsigned int &iResolution, const UNIT_T &eUnit, const unsigned long &lSize, const bool &bIsConditional=false, const long &lConditonalValue=0, const ::std::map< VARIABLE_VALUE_VECTOR_T, CVariable > &ValueMap=::std::map< VARIABLE_VALUE_VECTOR_T, CVariable * >()) throw ()
	general constructor
	CVariable (const CVariable &Source)
	deleted copy constructor
unsigned long	GetSize () const throw ()
	gets the size of the variable depending on the value stored
CVariable &	operator<< (const ::std::vector< bool > &Bits) throw (::oETCS::DF::Error::CException)
	streaming operator for filling a telegram with raw data
CVariable &	operator= (const CVariable &Source)
	deleted assignment operator
CVariable &	operator>> (::std::vector< bool > &Bits) throw (::oETCS::DF::Error::CException)
	streaming operator for getting the raw data in a variable
void	SetValue (const ::std::string &Value) throw ()
	sets explicitly the value of a variable by a string
virtual	~CVariable () throw ()

Static Public Member Functions
static oETCS::DF::VARIABLE_VALUE_VECTOR_T	StringToValueVector (const ::std::string &Value) throw ()
	convertion method

Public Attributes
::std::vector < oETCS::DF::CBitFlow * >	m_BitValues
	vector of pointers to bit flows to storages
const UNIT_T	m_eUnit
	unit of variable value
const unsigned int	m_iResolution
	fixed resolution of a variable
::std::vector< CVariable * >	m_IteratedVariables
	vector with pointers to all variables which are iterated by this instance
const unsigned long	m_lSize
	size of the variable in bit
::std::vector< CVariable * >	m_ScaledVariables
	vector with pointers to allvariable objecst which are scaled by this instance

Private Attributes
const bool	m_bConditionalIterator
	flag for variable being a conditional iterator
double	m_dFactor
	scalar factor
unsigned int	m_iIterated
	iteration factor
const long	m_lConditionalValue
	conditional value used, if conditional operator
::std::vector < oETCS::DF::VARIABLE_VALUE_T >	m_Value
	vector as bit storages for the value of a variable
const ::std::map < oETCS::DF::VARIABLE_VALUE_VECTOR_T, CVariable * >	m_ValueMap
	optional map of certain byte values to predefined variables

Detailed Description

class for holding variable values

Definition at line 80 of file Language.h.

Member Enumeration Documentation

enum oETCS::DF::CVariable::UNIT_T

enum type for the physical unit type of a variable

Enumerator:

SECONDS	seconds as physical unit
KILO_METERS_PER_HOUR	km/h as physical unit
METERS	meters as physical unit
CENTI_METERS	centi meters as physical unit
PER_MILL	per mill as physical unit (unit less)
INTEGER	plain integer as physical unit (unit less)
DOUBLE	plain double as physical unit (unit less)
STRING	plain string as physical unit (unit less)

Definition at line 86 of file Language.h.

Constructor & Destructor Documentation

oETCS::DF::CVariable::CVariable	(	oETCS::DF::CEVCStateMachine *const	pStateMachine,
		const unsigned int &	iResolution,
		const UNIT_T &	eUnit,
		const unsigned long &	lSize,
		const bool &	bIsConditional = `false`,
		const long &	lConditonalValue = `0`,
		const ::std::map< VARIABLE_VALUE_VECTOR_T, CVariable * > &	ValueMap = `::std::map< VARIABLE_VALUE_VECTOR_T, CVariable * >()`
	)		throw ()

explicit

general constructor

Parameterises the Packet with all constant members. The Packet object takes over the posession of all variables/memory passed by pointer.

Parameters

[in]	pStateMachine	pointer to parent EVC state machine
[in]	iResolution	numerical resolution
[in]	eUnit	physical unit
[in]	bIsConditional	optional flag for an conditional iterator
	in]	lConditionalValue optional value used for the conditional iterator
[in]	ValueMap	optional map of values

Definition at line 64 of file Language.cpp.

oETCS::DF::CVariable::CVariable ( const CVariable & Source )

deleted copy constructor

oETCS::DF::CVariable::~CVariable ( ) throw ()

virtual

Definition at line 88 of file Language.cpp.

Member Function Documentation

void oETCS::DF::CVariable::Calculate ( ) throw (::oETCS::DF::Error::CException)

calculates the value

Calculates the real value, including value map and scaling, and stores it in the storage object under m_pValueStorage, if available.

Definition at line 99 of file Language.cpp.

References oETCS::DF::CStorage::Calculate(), oETCS::DF::DOUBLE, m_bConditionalIterator, m_BitValues, oETCS::DF::CStorage::m_dDoubleInput, m_dFactor, oETCS::DF::CStorage::m_DoubleArrayInput, m_eUnit, oETCS::DF::CStorage::m_iIntInput, m_iIterated, m_iResolution, m_IteratedVariables, m_lConditionalValue, m_lSize, m_ScaledVariables, oETCS::DF::CStorage::m_StringInput, m_Value, m_ValueMap, oETCS::DF::STRING, and STRING.

Here is the call graph for this function:

unsigned long oETCS::DF::CVariable::GetSize ( ) const throw ()

gets the size of the variable depending on the value stored

Returns: size of the variable in bits

Definition at line 668 of file Language.cpp.

References m_iIterated, and m_lSize.

oETCS::DF::CVariable & oETCS::DF::CVariable::operator<< ( const ::std::vector< bool > & Bits ) throw (::oETCS::DF::Error::CException)

streaming operator for filling a telegram with raw data

Parameters

[in] Bits vector of boolean holding the the exact amount of bit raw data in little endian format

Definition at line 703 of file Language.cpp.

CVariable& oETCS::DF::CVariable::operator= ( const CVariable & Source )

deleted assignment operator

oETCS::DF::CVariable & oETCS::DF::CVariable::operator>> ( ::std::vector< bool > & Bits ) throw (::oETCS::DF::Error::CException)

streaming operator for getting the raw data in a variable

Parameters

[out] Bits vector of boolean holding the bit raw data in little endian format

Returns: reference to this instance

Definition at line 745 of file Language.cpp.

void oETCS::DF::CVariable::SetValue ( const ::std::string & Value ) throw ()

sets explicitly the value of a variable by a string

Parameters

[in] Value new value as string

Definition at line 680 of file Language.cpp.

oETCS::DF::VARIABLE_VALUE_VECTOR_T oETCS::DF::CVariable::StringToValueVector ( const ::std::string & Value ) throw ()

static

convertion method

Converts a string (encoded by a prefix) to the value vector type used by language variables.

Prefixes:
d - double value s - string value i - integer value all other - binary value

Parameters

[in] Value string with the value to convert

Returns: converted value vector

Definition at line 771 of file Language.cpp.

Member Data Documentation

const bool oETCS::DF::CVariable::m_bConditionalIterator

private

flag for variable being a conditional iterator

Definition at line 289 of file Language.h.

Referenced by Calculate().

::std::vector< oETCS::DF::CBitFlow* > oETCS::DF::CVariable::m_BitValues

vector of pointers to bit flows to storages

Definition at line 305 of file Language.h.

Referenced by Calculate(), oETCS::UT::CFunctionBlock::setUp(), and oETCS::UT::CLanguage::setUp().

double oETCS::DF::CVariable::m_dFactor

private

scalar factor

Is multiplied with any numerical result of the value calculation

Definition at line 282 of file Language.h.

Referenced by Calculate().

const UNIT_T oETCS::DF::CVariable::m_eUnit

unit of variable value

Definition at line 246 of file Language.h.

Referenced by Calculate().

unsigned int oETCS::DF::CVariable::m_iIterated

private

iteration factor

Defines how many times a variable object is iterated.

Definition at line 273 of file Language.h.

Referenced by Calculate(), and GetSize().

const unsigned int oETCS::DF::CVariable::m_iResolution

fixed resolution of a variable

Definition at line 239 of file Language.h.

Referenced by Calculate().

::std::vector< CVariable* > oETCS::DF::CVariable::m_IteratedVariables

vector with pointers to all variables which are iterated by this instance

Definition at line 319 of file Language.h.

Referenced by Calculate(), and oETCS::UT::CLanguage::setUp().

const long oETCS::DF::CVariable::m_lConditionalValue

private

conditional value used, if conditional operator

Definition at line 296 of file Language.h.

Referenced by Calculate().

const unsigned long oETCS::DF::CVariable::m_lSize

size of the variable in bit

Definition at line 253 of file Language.h.

Referenced by Calculate(), and GetSize().

::std::vector< CVariable* > oETCS::DF::CVariable::m_ScaledVariables

vector with pointers to allvariable objecst which are scaled by this instance

Definition at line 312 of file Language.h.

Referenced by Calculate(), and oETCS::UT::CLanguage::setUp().

::std::vector< oETCS::DF::VARIABLE_VALUE_T > oETCS::DF::CVariable::m_Value

private

vector as bit storages for the value of a variable

Index 0 (m_Value[0]) is the LSB.

Definition at line 264 of file Language.h.

Referenced by Calculate().

const ::std::map< oETCS::DF::VARIABLE_VALUE_VECTOR_T, CVariable* > oETCS::DF::CVariable::m_ValueMap

private

optional map of certain byte values to predefined variables

Definition at line 328 of file Language.h.

Referenced by Calculate().

The documentation for this class was generated from the following files:
