Description

fxviz is an XML tree visualizer. It reads an XML document and produces a graph description file suitable as input to vcg. The document tree can then be viewed or printed with the help of xvcg. The typical invocation is
fxviz [option ...] [infile]
If infile is given, fxviz reads its input document from that file, otherwise from standard input. By default, it prints its output to the standard output. The generated tree contains the following kinds of nodes:
node type color information unfolds into
comment yellow file position -
processing instruction    orange file position -
element light blue file position attributes
text beige file position data segments
attribute light green    - -
attribute value beige attribute type    -
Most of the nodes are annotated with their starting position in the XML source; attribute value nodes provide the attribute type instead.

A text node is usually the result of merging several adjacent text fragments into a single one. It is, however, possible to unfold a text node into the sequence of fragments it consists of.

Simimlarly, an element node can be unfolded such that each of its attributes is represented by its own attribute node as a child of the element.

----------------

An Example

Consider the follwing XML document test.xml:

<!DOCTYPE a [
<!ELEMENT a ANY>
<!ELEMENT b ANY>
<!-- comment in DTD -->
<!ATTLIST a x NMTOKEN "foo"
	    y ID      #IMPLIED>
<!ATTLIST b x (yes|no) #REQUIRED
	    y IDREFS   #IMPLIED>
]>

<?foo pi in prolog ?>
<a x="yup" y="i-1">
  <!-- comment in a -->
  <b x="yes" y="i-1">
    This is text with another <a>a element with an empty <b/> </a>,
    a character reference &#x3C; and a <![CDATA[CDATA section]]>
  </b>
  <?foo pi in a ?>
</a>
<!-- comment in epilog -->

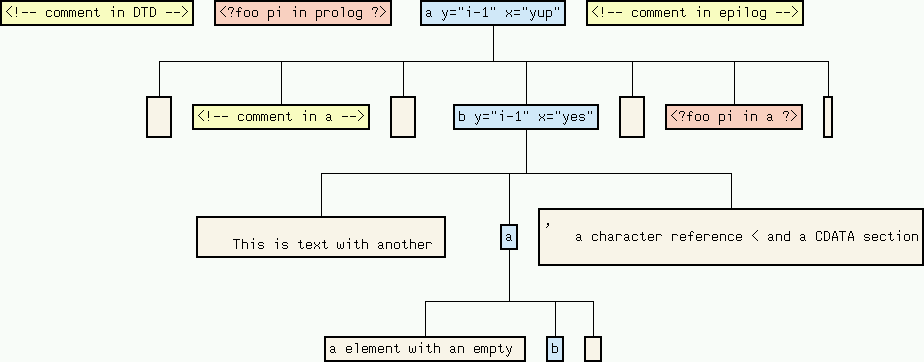

The graph description produced by fxviz will display the document tree as follows:

graph output example

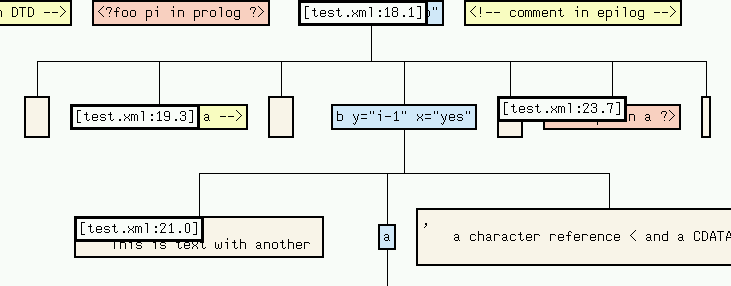

Each node in the tree is connected to each of its children by an edge. Additionally, the nodes are annotated this their starting postions in the XML source. These positions can be viewed by selecting Node Information => Source Position in the vcg menu:

graph output example

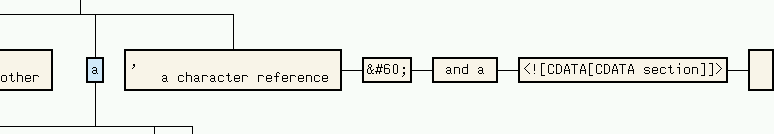

Text nodes are merged such that no text node has another text node as a direct sibling. If you wish to see how a merged text node is composed of text fragments, apply vcg's Unfold Subgraph function to that node. For the second text-node in the b-element this results in:

graph output example

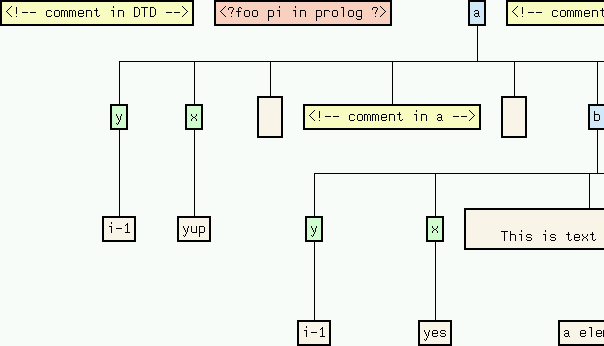

Additional information about attributes of elements is also available by applying vcg's Unfold Subgraph function to the element node: the attributes are removed from the element node's label, and for each attribute a new attribute node is inserted before the element's content. Each attribute node is labeled with the attribute name and has as a single child the attribute value:

graph output example

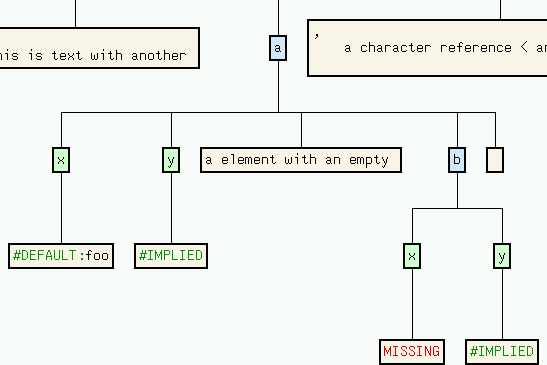

The values of defaulted attributed are marked, and unspecified attributes are either marked as implied or missing:

graph output example

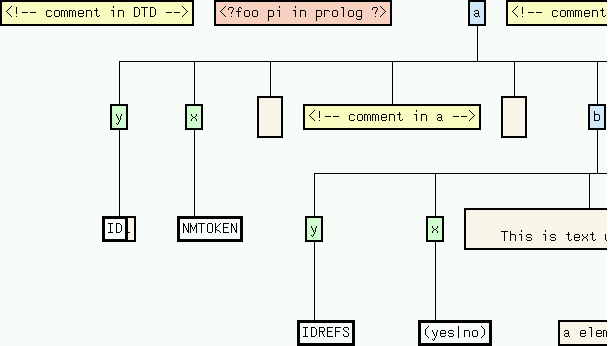

Finally, if you are interested in the attribute type of some specified attribute, use the Node Information => Attribute Type function:

graph output example

----------------

Summary of Command Line Options

Each option can be one of: fxviz understands all options documented for fxp; additionally, the following options are available:
-o fname
--output=fname
Write all output, except for errors and warnings, to the file named fname. If fname is -, the standard output is used. Defaults to -.

----------------

Tributes

fxviz generates output for vcg which is an excellent graph layout program written by Georg Sander at the University of Saarbrücken.

----------------

A. Neumann (neumann@PSI.Uni-Trier.DE)
